Scenario Name:
Safety protection at the entrance and exit of equipment after coating, drying, and winding
Requirements:
Safety protection of the coating machine workstation. Personnel must be prohibited from entering or exiting during the production process of coating the positive and negative electrode materials to prevent danger.
Solution:
Basic Area Safety Light Curtain H3EL Series
Scenario Name:
Positioning of the Coating Process Cart
Requirements:
After the battery electrode coil is coated, the loading and unloading operation requires the lifting of the AGV car to transport the electrode coil to the next process.
Solution:
EST Series TOF Laser Ranging
Scenario Name:
Measurement of the electrode roll diameter in a slitting machine
Requirements:
It is necessary to continuously measure the roll diameter of the winding and unwinding before and after slitting.
Solution:
High-precision displacement ESH series

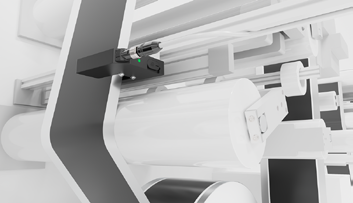

Scenario Name:
Deflection detection of electrode rewinding after slitting
Requirements:
After the electrode is slit, it needs to be rolled up and sent to the next process for die-cutting.
Solution:
Laser Correction Sensor EGS Series

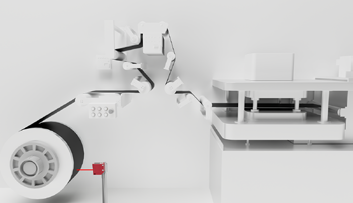

Scenario Name:
Detection of markings for tab cutting or electrode cutting
Requirements:
Detect the position of copper foil or aluminum foil on the electrode and send the signal to the die-cutting machine for tab cutting or electrode cutting.
Solution:
LS211-BG Series Photoelectric Sensor

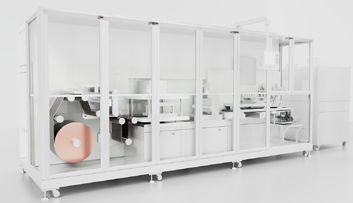

Scenario Name:
Die-cutting machine door lock security protection
Requirements:
When the die-cutting machine is working, the operation of the equipment will pose certain risks to people, and the risks need to be isolated.
Solution:
SDS04 Series Safety Door Switch
